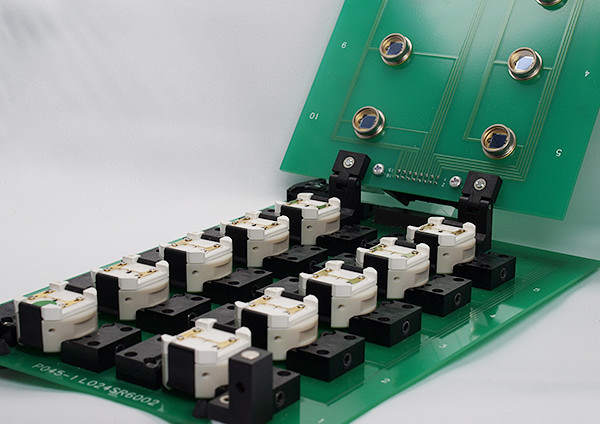

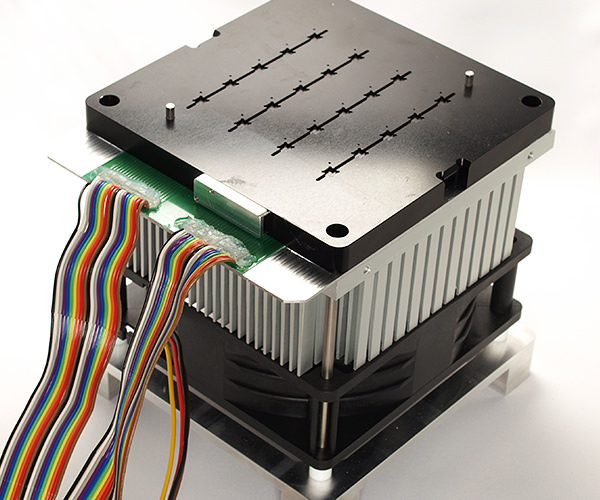

Aging socket for laser diode (LD)

Aging socket for laser diode (LD)

The aging socket for LD can test the single chip before packaged.
It is possible to incorporate a photodiode on the cover side and detect it individually.
Evaluation before packaging can reduce the cost of selection.
It can be mounted from 10 to 20 connections.

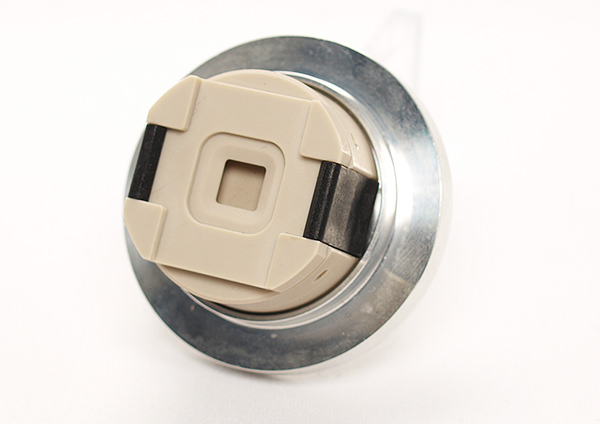

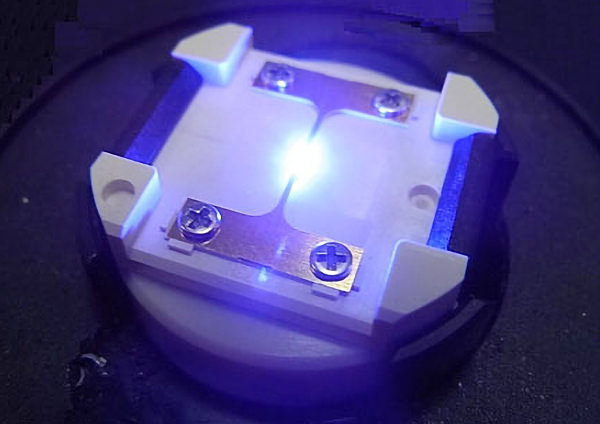

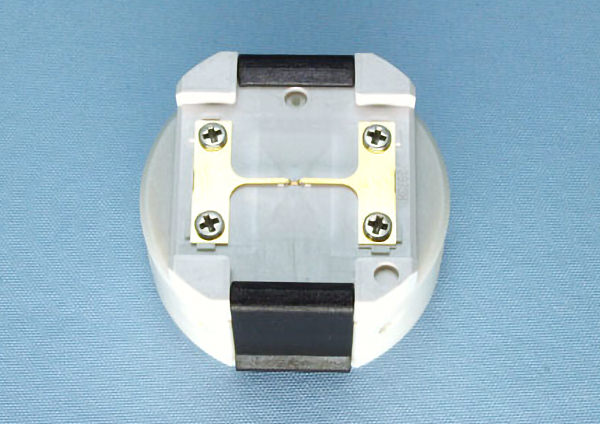

Test socket for LED

Test socket for LED

This kind of sockets can do the aging test for single LED bare chip.
The socket can inspect LED bare chips. It contributes to reduce the cost of packaging.
We will propose sockets that can used for product inspection or mass production's aging tests.
Consider the problem of LED chip heat release to select the appropriate heat-resistant material and use other heat dissipation measure.
We can propose the socket for UV-LED whose demand is increasing recently.
One test socket can mount multiple channels at the same time, and it is also possible to propose products for the mass production's aging tests.

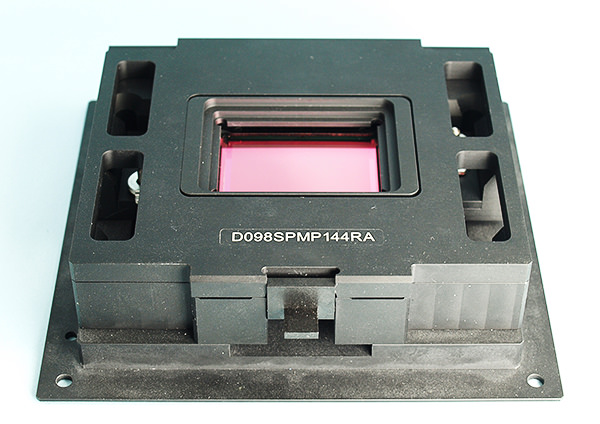

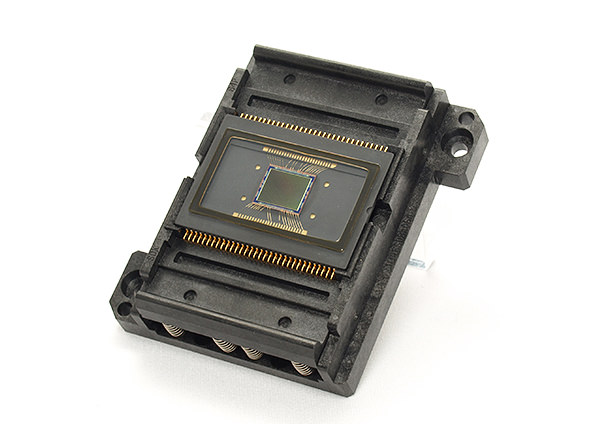

Image Sensor

It is possible to make a mechanism to correct the position of image sensors' optial center.
We can provide sockets that correspond from production line automatic inspection to product inspection for evaluation.
It is possible to manufacture Multi-channel sockets for image sensors.
We have successful experience to manufacture sockets for the□ 1.0 mm or less package ( used for medical).
